Spur Gear Applications, Design, and Operation

Published by GayaMadhusanka on

In this article, we dive deep into the dynamic world of spur gears, revealing their intricate design, precise operation, and wide-ranging applications. Get ready to uncover the secrets behind the power and efficiency of these mechanical wonders with spur gear systems. From understanding gear tooth profiles and calculations to exploring gear meshing and lubrication techniques, we leave no stone unturned. Whether you’re an engineer seeking in-depth knowledge or fascinated by the inner workings of machinery, this article will equip you with valuable insights. Join us on this enlightening journey as we unravel the complexities of spur gears and provide you with the tools to optimize their performance.

What is a Spur Gear?

A spur gear is a type of gear with straight teeth parallel to the gear’s axis of rotation. It is one of the most common and most straightforward types of gear used in mechanical systems. Spur gears are cylindrical in shape and have teeth that are evenly spaced around the circumference of the gear.

The teeth on a spur gear mesh with the teeth of another spur gear to transmit torque and rotation between two parallel shafts. They are designed to mesh together smoothly and provide a constant speed ratio between the input and output shafts.

Key Characteristics of Spur Gears

These spur gears have several key characteristics.

  • Straight Teeth
  • Parallel Shafts
  • Constant Speed Ratio
  • No Axial Thrust

Spur Gear Applications

Spur gears find a wide range of applications across various industries due to their simplicity, efficiency, and versatility. Here are some common applications of spur gears:

  • Gearboxes
  • Transmissions (Automotive)
  • Robotics
  • Conveyors
  • Packaging Machinery
  • Printing Presses
  • Textile Machinery
  • Lathes
  • Milling Machines
  • Drilling Machines
  • Clocks and Watches
  • Power Tools
  • Agricultural Machinery
  • Marine Propulsion Systems
  • Mining Equipment
  • Industrial Mixers
  • HVAC Systems
  • Food Processing Equipment
  • Medical Devices
  • Pumps and Compressors
  • Wind Turbines
  • Material Handling Equipment (forklifts, cranes, and hoists)
  • Garage Door Openers
  • Exercise Equipment
  • Paper Shredders
  • Automatic Doors
  • Stage and Theater Equipment
  • Elevators
  • Amusement Park Rides
  • Garage Door Opener Mechanisms
Spur Gear System
Spur Gear System

Spur Gear Terminology

Here are some common terminologies associated with spur gears

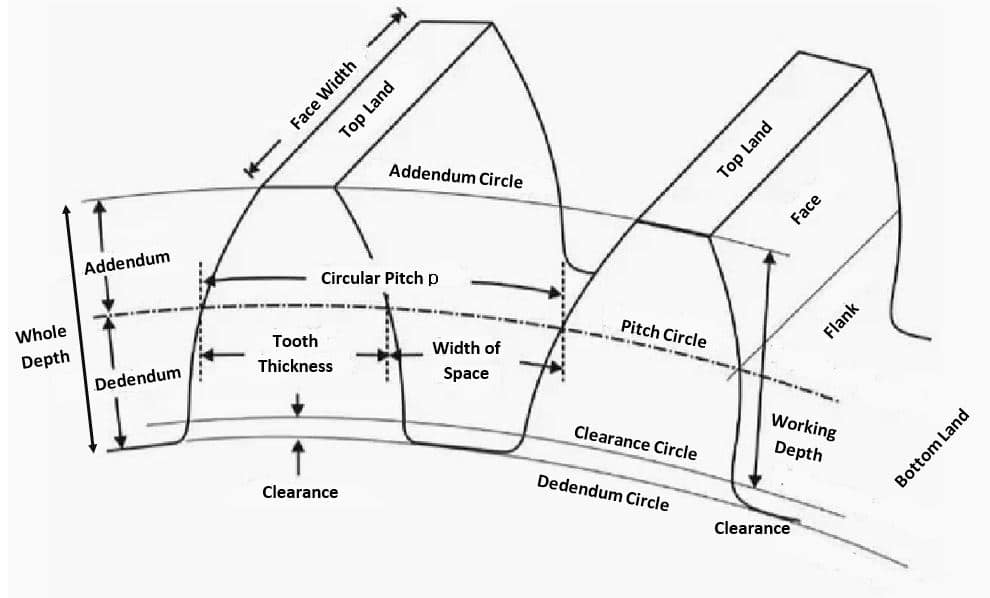

Gear Terminology, Spur Gear
Gear Terminology

Here are some common terminologies associated with spur gears

  • Pitch Diameter: The theoretical diameter of the gear measured at the point where the teeth engage with another gear.
  • Number of Teeth: The total count of teeth on the gear.
  • Module or Diametral Pitch: The measure of the size of the teeth on the gear. The module is the metric unit, while Diametral Pitch is the imperial unit.
  • Pressure Angle: The angle between the line tangent to the gear tooth profile and a line perpendicular to the gear’s axis. Common pressure angles are 20 degrees and 14.5 degrees.
  • Addendum: The radial distance between the pitch circle and the top of the gear tooth.
  • Dedendum: The radial distance between the pitch circle and the bottom of the gear tooth.
  • Circular Pitch: The distance between corresponding points on adjacent teeth measured along the pitch circle.
  • Face Width: The width of the gear measured parallel to the gear’s axis.
  • Clearance: The radial distance between the top of one gear tooth and the bottom of the mating gear tooth.
  • Backlash: The amount of free movement or play between the engaged teeth of two gears.
  • Center Distance: The distance between the centers of two meshing gears.
  • Gear Ratio: The ratio of the number of teeth on the driving gear to the number of teeth on the driven gear. It determines the speed and torque relationship between the gears.
  • Contact Ratio: The measure of the number of teeth in contact simultaneously as gears rotate.
  • Tooth Profile: The specific shape and contour of the gear teeth, such as involute, which is the most common tooth profile for spur gears.
  • Root Diameter: The diameter of the gear measured at the bottom of the tooth spaces.

Pressure Angle

There are two types of pressure angles 20 degrees and 14.5 degrees. The following images show the difference between the two angle types.

Spur Gear Pressure Angle, 20 Degree
20-Degree Pressure Angle – Spur Gear

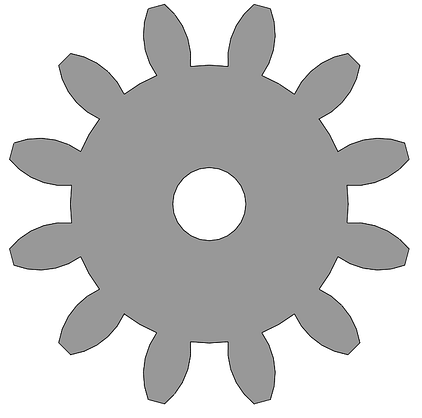

Spur Gear Pressure Angle, 14.5 Degree
14.5-Degree Pressure Angle – Spur Gear

Spur Gear Calculation

  • Pitch Diameter (D):
    • For Metric Module (m): D = (Number of Teeth + 2) × m
    • For Imperial Diametral Pitch (P): D = (Number of Teeth + 2) / P
  • Gear Ratio (GR):
    • GR = Number of Teeth on Driven Gear / Number of Teeth on Driving Gear
  • Center Distance (C):
    • C = (Pitch Diameter of Gear A + Pitch Diameter of Gear B) / 2
  • Circular Pitch (CP):
    • For Metric Module (m): CP = π × m
    • For Imperial Diametral Pitch (P): CP = π / P
  • Tooth Thickness (T):
    • T = CP / 2π
  • Addendum (A):
    • For Metric Module (m): A = m
    • For Imperial Diametral Pitch (P): A = 1 / P
  • Dedendum (Dd):
    • For Metric Module (m): Dd = 1.25 × m
    • For Imperial Diametral Pitch (P): Dd = 1 / P
  • Working Depth (Wd):
    • Wd = 2 × Addendum
  • Clearance:
    • Clearance = Dedendum – Addendum
  • Outside Diameter (OD):
    • OD = Pitch Diameter + 2 × Addendum

These calculations provide basic parameters and dimensions of spur gears. However, if you need more complex calculations you can get the support of design software or gear calculators. It is always recommended to consult gear design references, specialized software, or engineering professionals for precise calculations in specific applications.

Lewis Equation in Spur Gears

The Lewis equation, also known as the Lewis form factor equation, is used in gear design to calculate the bending stress in a gear tooth. It helps determine the maximum allowable load that a gear tooth can withstand without failure. The equation is named after Wilfred Lewis, an American engineer who developed it.

σ = (Y * K * B * P) / (m * Z)


  • σ is the bending stress in the gear tooth
  • Y is the Lewis form factor, which accounts for the shape and size of the gear tooth
  • K is the stress concentration factor, which takes into consideration any stress concentration caused by geometric features like fillets or keyways
  • B is the face width of the gear
  • P is the transmitted load or applied force on the gear
  • m is the module of the gear (or the diametral pitch for imperial units)
  • Z is the number of teeth in the gear

The Lewis equation is commonly used in gear design to ensure that the bending stress in the gear tooth remains within the allowable limits to prevent tooth failure. The values for the Lewis form factor (Y) and stress concentration factor (K) can be obtained from standardized tables or empirical formulas based on the gear tooth profile and geometry.

By using this equation, gear designers can determine the appropriate dimensions and material selection to ensure safe and reliable gear operation.

Materials for Spur Gears

You can manufacture from a variety of materials depending on the specific application requirements. The choice of material plays a crucial role in determining the gear’s durability, strength, and resistance to wear and fatigue. Here are some commonly used materials for spur gears

  • Steel (including alloy steel and carbon steel)
  • Cast Iron
  • Brass
  • Bronze
  • Plastic (such as nylon or acetal)

Plastic Spur Gears

Plastic spur gears are a specific type of spur gear that are manufactured using various engineering plastics. These gears offer unique advantages and are commonly used in specific applications where their properties are advantageous. Here are some key points about plastic spur gears:

  1. Lightweight
  2. Low Noise
  3. Self-Lubrication
  4. Corrosion Resistance
  5. Cost-Effective
  6. Design Flexibility
  7. Electrical Insulation
  8. Non-Magnetic

Applications of Plastic Gears

Plastic spur gears are commonly used in various industries and applications, including;


  1. Power window mechanisms
  2. HVAC systems
  3. Seat adjustment mechanisms
  4. Dashboard instrument clusters
  5. Sunroof mechanisms

Consumer Electronics:

  1. Printers and copiers
  2. Cameras and photography equipment
  3. Audio equipment (CD/DVD players, speakers)
  4. Home appliances (blenders, mixers)
  5. Computer peripherals (printers, scanners)

Medical Devices:

  1. Surgical instruments
  2. Imaging equipment (MRI, CT scanners)
  3. Patient monitoring devices
  4. Laboratory equipment
  5. Prosthetics and orthotics

Small Appliances:

  1. Kitchen appliances (food processors, coffee machines)
  2. Personal grooming devices (electric shavers, hairdryers)
  3. Handheld power tools
  4. Electronic toys and games
  5. Home improvement tools (drills, screwdrivers)


  1. Robotic arms and manipulators
  2. Automated assembly systems
  3. Autonomous robots
  4. Drones and UAVs (Unmanned Aerial Vehicles)
  5. Industrial automation equipment

Custom Spur Gears

Custom spur gears are commonly used in various industries where off-the-shelf gears may not meet specific requirements. These gears provide tailored solutions, optimizing performance, efficiency, and reliability in critical applications ranging from automotive and industrial machinery to aerospace and robotics.

Here are some key aspects of custom spur gears:

  1. Tailored specifications: Custom spur gears are designed to meet specific requirements, ensuring a precise fit for the application.
  2. Unique tooth profiles: Specialized tooth profiles optimize performance, load distribution, noise reduction, and efficiency.
  3. Material selection: Gears can be made from steel, cast iron, brass, bronze, or engineering plastics, chosen based on factors like strength and durability.
  4. Advanced manufacturing techniques: CNC machining, gear hobbing, or gear shaping are used for precise production of complex gear geometries.
  5. Application-specific considerations: Gears are designed to address specific needs such as high-load capacity, low noise, or environmental compatibility.
  6. Prototyping and testing: Gears undergo testing to validate performance before final production.
  7. Enhanced performance and reliability: Custom gears optimize efficiency, durability, and overall gear performance.

According to your requirement, you can change the gear design parameters like tooth profile, gear manufacturing material, and shape of the gear as well.

If you need a different gear wheel shape, you can also manufacture those gear parts. Unconventional gear shape means you must go for different manufacturing processes like EDM. That will increase the cost of production as well.

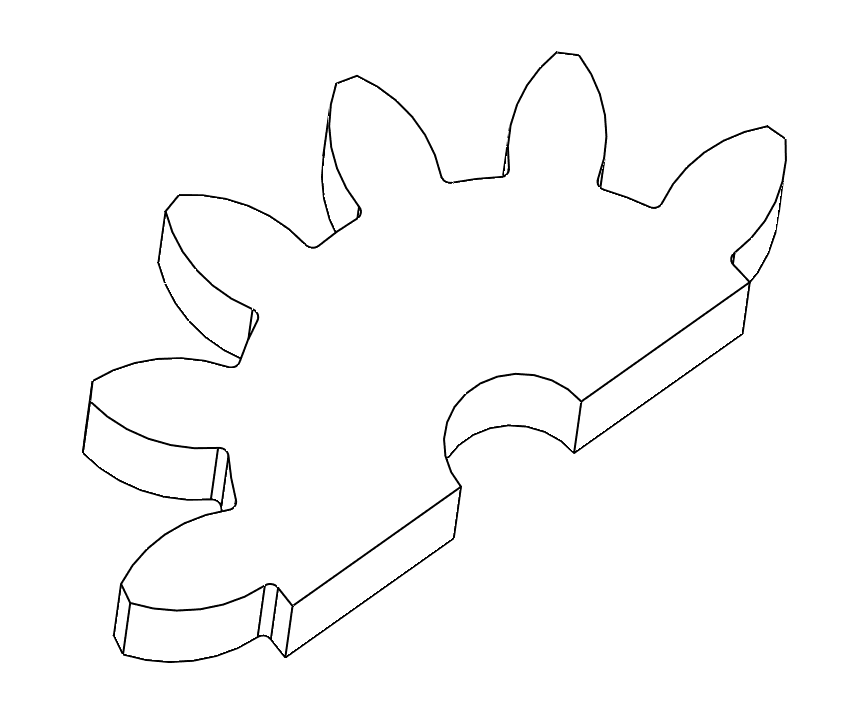

Custom Spur Gears Shapes
Custom Spur Gears Shapes

Gear Failure

Gear failure is a phenomenon that occurs when gears experience malfunctions or problems that hinder their proper functioning. Gears play a crucial role in transmitting power and motion in various mechanical systems, and any failure in their operation can have significant consequences.

Understanding the different types of gear failures is essential for engineers, designers, and maintenance professionals to identify potential issues, prevent failures, and ensure reliable gear performance.

List of Gear Failures:

  • Tooth Breakage
  • Wear
  • Pitting
  • Scoring
  • Misalignment
  • Fatigue Failure
  • Overloading
  • Lubrication Failure

These gear failures can occur due to a variety of factors, such as excessive loads, improper material selection, inadequate lubrication, misalignment, and fatigue over time. Understanding these failure modes is essential for identifying potential issues, implementing preventive measures, and ensuring reliable gear performance.

Thank you, dear readers, for diving into the article on Spur Gear Applications, Design, and Operation. We are grateful for your time and interest in exploring the diverse realms of spur gears. Through this article, we aimed to provide valuable insights into the applications, design considerations, and operational aspects of spur gears. By delving into their versatile applications and discussing key design factors and operational principles, we hope to have expanded your knowledge and understanding of these vital components. We appreciate your readership and look forward to bringing you more informative content in the future.
