Shot Blasting Process Step by Step

Published by GayaMadhusanka on

Shot blasting is a method that involves propelling abrasive materials at high speeds to clean, etch, or strengthen surfaces. This article will delve into the intricacies of shot blasting, from preparation and equipment setup to the blasting process itself. Whether you’re new to this process or looking to enhance your knowledge, join us as we unravel the step-by-step process behind this transformative method.

What is Shot Blasting

Shot blasting is a highly effective surface preparation technique used in various industries to clean, polish, and strengthen surfaces. It involves propelling small metallic or abrasive particles, known as shots, at high speeds onto a surface using compressed air or centrifugal force. The shots impact the surface, removing contaminants, rust, paint, or other unwanted substances, and creating a textured or profiled surface.

This blasting process is widely utilized in sectors such as;

  • Construction
  • Ship Building Industry
  • Automotive Industry
  • Aerospace Industry
  • Manufacturing Industry

It enhances surface adhesion for coatings, improves the durability of materials, and enhances the overall appearance of surfaces. With its ability to remove surface imperfections and create a uniform finish, shot blasting plays a vital role in preparing surfaces for subsequent processes such as painting, plating, or welding. Suppose you’re looking for professional blasting services. In that case, it is essential to engage with a reputable provider who possesses the expertise, advanced equipment, and understanding of industry standards to ensure optimal results for your specific requirements.

Application of Shot Blasting

There are different applications of blasting processes.

  • Surface preparation for coatings, painting, and treatments.
  • Cleaning and degreasing industrial equipment and machinery parts.
  • Rust and corrosion removal from metal surfaces.
  • Descaling and cleaning metal objects and structures.
  • Surface profiling for improved traction on roadways, airport runways, and industrial floors.
  • Deburring and deflashing to remove excess material and sharp edges from manufactured parts.
  • Shot peening to strengthen metal components and improve fatigue resistance.
  • Mold and die cleaning for industries like plastic injection molding or die casting.
  • Removal of old coatings, dirt, and grime in historic restoration projects.
  • Surface preparation for welding, plating, or bonding.
  • Removal of surface imperfections and smoothing rough surfaces.
  • Cleaning and restoration of architectural features and sculptures.
  • Maintenance and cleaning of bridges, pipelines, and infrastructure.
  • Preparation of concrete surfaces for repairs and overlays.
  • Removal of rubber marks, paint, and skid marks on roads and parking lots.

Shot Blasting Process

Shotblasting is a surface preparation technique and the main purpose of this method is clean, descale, or strengthen a material’s surface. The process involves propelling small abrasive particles at high velocity to remove contaminants or modify the surface texture. The main steps in shot-blasting are:

  • Surface Preparation
  • Equipment Setup
  • Abrasive Selection
  • Abrasive Propulsion
  • Media Recycling
  • Surface Inspection
  • Surface Protection

Shot Blasting Concrete

When shot blasting concrete, operators propel small steel or metallic particles at high velocity onto the concrete surface. This process effectively removes contaminants, coatings, old paint, and surface irregularities, resulting in a clean, roughened, and profiled surface.

Shot blasting prepares the concrete surface for various applications, such as;

  • Applying new coatings
  • Applying overlays
  • Applying adhesives

As it enhances the bond strength between the concrete and subsequent materials. Additionally, shot blasting can improve the appearance of the concrete by creating a consistent texture. It is essential to use the appropriate shot blasting equipment, select the right abrasive media, and follow necessary safety precautions to ensure effective and safe concrete shot blasting.

Steel Shot Blasting

Steel shot blasting is a surface preparation method that involves propelling small steel particles at high velocity onto a target surface.

The steel shots are propelled using specialized blasting equipment, such as wheel blasters or air blasting systems. As the steel shots impact the surface, they effectively remove rust, scale, paint, and other contaminants, leaving behind a clean and profiled surface.

Steel shot blasting is commonly used in industries such as construction, automotive, and manufacturing for preparing surfaces prior to painting, coating, or further treatment.

It provides excellent cleaning and surface roughening, ensuring optimal adhesion of coatings and improving overall surface quality. Proper safety measures and equipment maintenance are crucial during steel shot blasting to ensure a safe and efficient process.

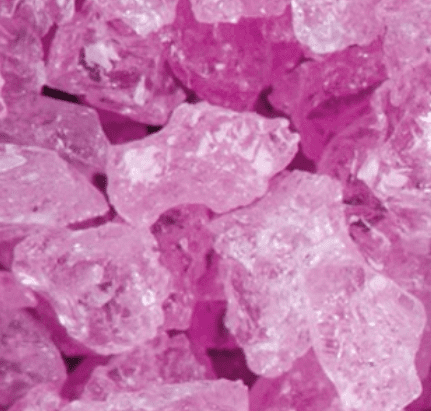

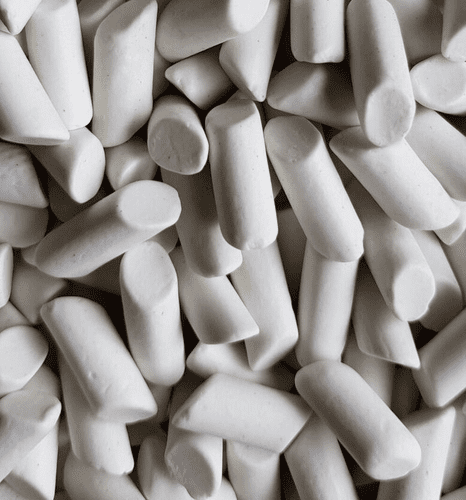

Shot Blasting Media

Normally shot blasting media is typically small particles, spherical-shaped pellets ranging in diameter from 1 to 6 mm. Depending on the application and target materials you can select the blasting media.

Different media have different applications and cleaning levels. The below table shows the materials and their common uses.

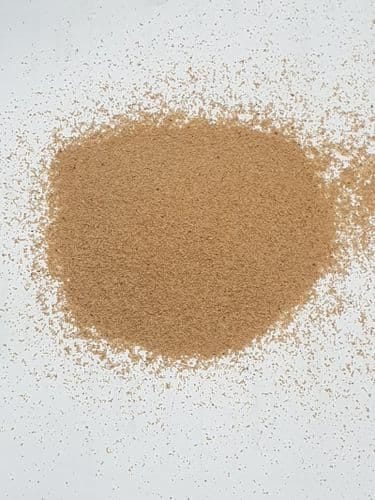

Shot Blasting Media and Common Uses
Shot Blasting Media and Common Uses

How to Control Your Shot Blasting Quality

To control the quality of shot blasting, follow these steps.

First, establish clear specifications and standards for the desired surface finish, cleanliness, and roughness. Second, regularly calibrate the shot blasting equipment to ensure consistent and accurate performance.

Monitor critical process variables such as abrasive flow rate, blast pressure, nozzle distance, and conveyor speed to maintain controlled blasting conditions. Use high-quality abrasive media that meets specifications.

Conduct proper maintenance of the equipment and provide training to operators on shot blasting techniques and quality control procedures. Implement a robust inspection and testing program to verify the quality of the process.

Document and analyze the results to identify areas for improvement and take corrective measures when necessary. By following these steps, you can effectively control shot blasting quality and achieve reliable results.

Abrasive Shot Blasting Methods

There are different types of abrasive shot blasting methods. Those methods have different advantages and disadvantages.

  • Micro Abrasive Blasting
  • Bead Blasting
  • Wheel Blasting
  • Hydro/Water Blasting
  • Wet Abrasive Blasting
  • Dry Ice Blasting
  • Bristle Blasting
  • Vacuum Blasting

The following description will help you to understand the application and methods of different abrasive blasting methods.

Wheel Blasting

In-wheel blasting, a high-speed rotating wheel or blast wheel propels abrasive media, which throws abrasive particles against the workpiece surface, removing contaminants and creating the desired surface profile. This method finds frequent use in large or heavy-duty applications.

Air Blasting

Air blasting involves using compressed air to propel abrasive particles onto the surface. This method offers versatility and finds common use in portable or handheld blasting equipment, allowing it to be applied to a wide range of surfaces and sizes.

Wet Blasting

Wet blasting combines abrasive particles with water or a liquid solution before propelling them onto the surface. The addition of water reduces dust and provides a more controlled and gentle blasting action. Wet blasting is often used for delicate surfaces or applications that require minimal surface damage.

Vacuum Blasting

In vacuum blasting, a closed-loop system propels abrasive media onto the surface while simultaneously recovering and recycling it through a vacuum recovery unit. This method is effective for controlling dust emissions and minimizing waste.

Centrifugal Blasting

Centrifugal blasting utilizes a spinning rotor to propel abrasive media against the workpiece. The rotation of the rotor creates centrifugal force, which propels the abrasive particles outward. This method is suitable for precise and controlled blasting, such as in aerospace or electronics industries.

Shot Peening

In shot peening, the surface is bombarded with small spherical media, such as steel shot or ceramic beads, to induce compressive stresses. This specialized shot-blasting method is commonly used to improve the fatigue resistance and strength of metal components.

Blasting Equipment

There are different types of equipment are used for the shot-blasting process. The following paragraphs will help you to understand the use of blasting equipment.

List of Blasting Equipment

There are unique types of equipment for the shot-blasting process. Each type of equipment serves different purposes and is suitable for specific applications in surface preparation, cleaning, and finishing.

  • Blast Cabinets
  • Blast Rooms
  • Portable Blasters
  • Tumble Blasters
  • Spinner Hanger Blasters
  • Table Blasters
  • Continuous Blasting Machines

Use of Blasting Equipment

Here is a brief overview of commonly used equipment:

Firstly, blast cabinets provide a controlled environment for small-scale or precision blasting tasks. Secondly, blast rooms serve as enclosed areas specifically designed to handle larger workpieces or facilitate batch processing. Operators like these rooms with abrasion-resistant materials to contain the blasting process and provide protection to the surrounding areas.

In addition, portable blasters offer compact and mobile units that operators can easily transport to different work sites. The common use of mobile units is on-site or field blasting applications.

On the other hand, tumble blasters are barrel-shaped machines that facilitate batch processing of small parts. Operators place the workpieces inside the rotating barrel, ensuring even blasting coverage.

Spinner Hanger Blasters

Furthermore, spinner hanger blasters feature a design that allows operators to hang larger workpieces, such as hooks or frames, on a rotating hook or hanger system. This arrangement enables thorough surface treatment from multiple angles. Table blasters, with a horizontal table or turntable, rotate the workpiece while propelling the blasting media onto the exposed surface, thereby providing 360-degree coverage.

Continuous Blasting Machines

The continuous blasting machines employ conveyor-based systems for high-volume production processes. They enable a continuous feed of workpieces through the blasting chamber.

Safety with Shot Blasting Process

Ensuring safety during the shot-blasting process is crucial. First and foremost, provide comprehensive training to operators on the safe operation of shot blasting equipment and the use of personal protective equipment (PPE).

Regularly inspect and maintain the equipment to prevent malfunctions that could pose safety risks. Establish clear safety protocols and procedures, including proper handling and storage of abrasive media and adherence to lockout/tagout procedures.

Implement effective ventilation systems to control dust and airborne contaminants. Conduct regular hazard assessments to identify and mitigate potential risks.

Encourage open communication between operators and management regarding safety concerns and provide avenues for reporting incidents or near misses. By prioritizing safety measures and fostering a safety-conscious culture, you can minimize risks and promote a safe working environment throughout the shot-blasting process.

Safety is First
Safety is First for the Shot Blasting Activities

At Mechheart, we are dedicated to providing you with the latest information and resources to enhance your knowledge in the field. We encourage you to explore our website for more articles, guides, and industry news related to mechanical engineering and surface treatment.

Thank you for visiting Mechheart.com! We hope this article on shot-blasting has provided you with valuable insights into the processes and abrasive media involved in this surface preparation technique. Whether you’re in manufacturing, construction, automotive, or any other industry, shot-blasting plays a vital role in achieving clean, descaled, and strengthened surfaces.

Should you have any questions or need further assistance, please don’t hesitate to reach out to our team. We are here to support you in your endeavors and help you stay ahead in the ever-evolving world of mechanical engineering.

Thank you for your continued support, and we look forward to serving you with more valuable content in the future.
