What is the Best Drawing Sheet Size for Engineering Drawings?

Published by GayaMadhusanka on

When it comes to engineering drawings, there are several standard sheet sizes that are commonly used. The choice of sheet size depends on the specific requirements of the drawings. You can select a drawing sheet size according to the details you need to present.

Common Drawing Sheet Size

ANSI (American National Standards Institute) and ISO (International Organization for Standardization) are the common two standards for papers. Whatever the product design software you can select these standard sheet sizes.

ANSI Standard

The most common drawing sheet sizes in engineering are;

  • ANSI A (8.5″ x 11″)
  • ANSI B (11″ x 17″)
  • ANSI C (17″ x 22″)
  • ANSI D (22″ x 34″)
  • ANSI E (34″ x 44″)

You can use the above sheet size for the following applications.

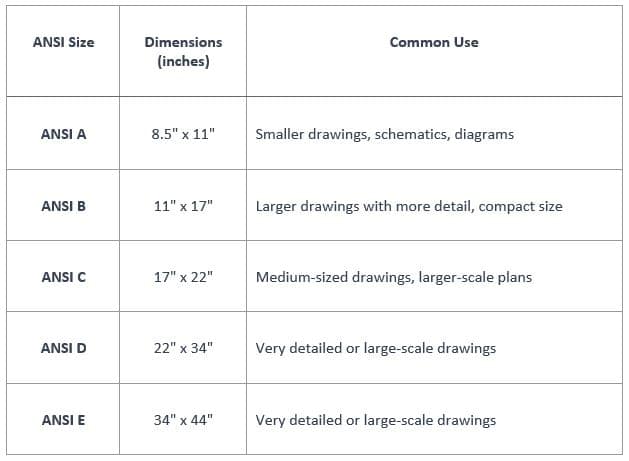

AISI Drawing Sheet Sizes and Applications

ISO Standard

ISO has A, B, and C series of sheets. But A sizes are the more common ones all over the world.

The most common drawing sheet sizes in engineering are;

  • A0 (841 mm x 1189 mm)
  • A1 (594 mm x 841 mm)
  • A2 (420 mm x 594 mm)
  • A3 (297 mm x 420 mm)
  • A4 (210 mm x 297 mm)

ISO Paper sizes have some relationships like this

A-Series Paper Sizes

Common Applications of A Size Sheets

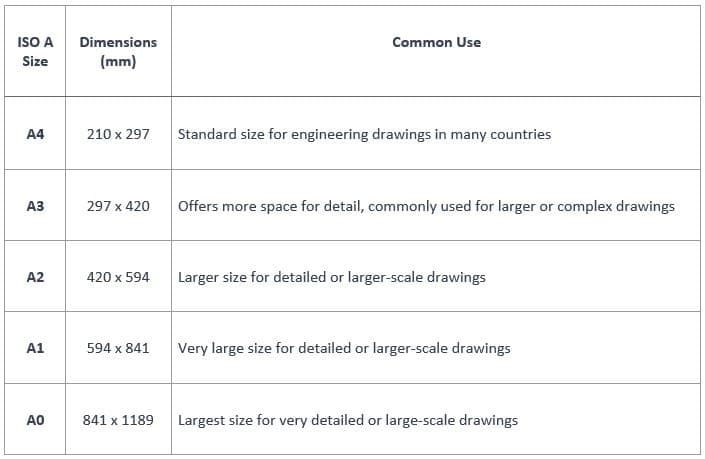

ISO A size Papers and Applications

It is important to consider factors such as the size of the final printed drawing, ease of handling and storage, and the level of detail that needs to be captured. However A4 size is very small for a drawing and it looks unprofessional work. A0 is a very large sheet and difficult to handle the sheets. So you can select drawing sheets A3, A2, and A1 based on your requirements.

Other Paper Sizes

Other than the above ANSI and ISO Size papers, there are some other sizes. Those are very common in other fields like the printing industry and architecture industry.

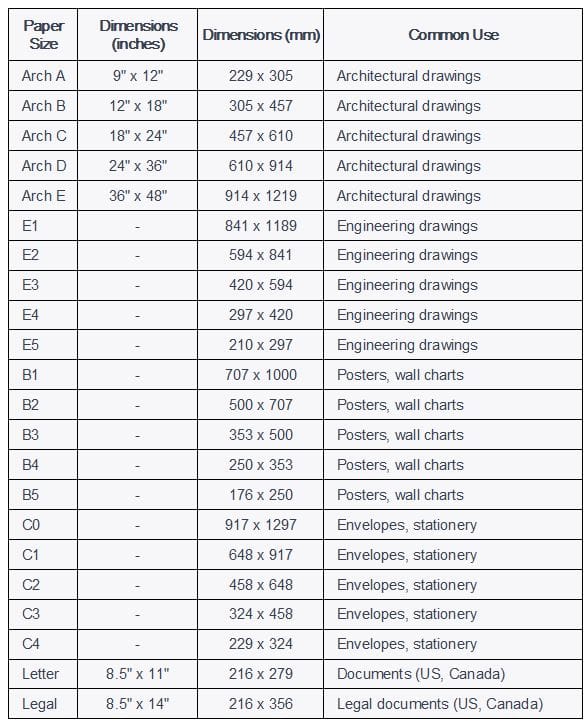

Paper Sizes and Application
