Lost Foam Casting Process

Published by GayaMadhusanka on

Lost foam casting is an innovative and cost-effective casting process that has gained popularity in recent years due to its ability to create highly precise and complex parts quickly. By using a foam pattern that is coated in a ceramic shell and then melted away. This process eliminates the need for expensive tooling and produces near-net-shape parts with exceptional quality and accuracy. In this article, we will take an in-depth look at the lost foam casting process, its advantages, and how it compares to other casting methods.

What is Lost Foam Casting?

In lost foam casting, a foam pattern is used to create a mold for metal parts. The foam is first sculpted into the desired shape and then coated in a ceramic material, which hardens to create the mold. The mold is then filled with molten metal, causing the foam to vaporize and be replaced by the metal. With the ability to eliminate the need for expensive tooling, foam casting has become an increasingly popular method of creating intricate and complex parts with high accuracy. In addition to its precision, foam casting is also known for being a cost-effective and eco-friendly casting process that has found widespread use in various industries such as automotive, aerospace, and marine engineering.

Lost Foam Casting Process

This casting process is a manufacturing process that has gained popularity due to its precision, cost-effectiveness, and eco-friendliness. In this process, a foam pattern is used to create a mold for casting metal parts. The pattern is first cut to the required shape and then coated in a ceramic material, which hardens to form the mold. Molten metal is then poured into the mold, causing the foam to vaporize and be replaced by the metal. The process eliminates the need for expensive tooling, and the resulting parts are of exceptional quality and accuracy. Because of its advantages, Foam casting is widely used in various industries, including automotive, aerospace, and marine engineering.

The following are the process steps of the Foam Casting Process

Process Steps of Foam Casting

The foam Casting process has basically nine process steps.

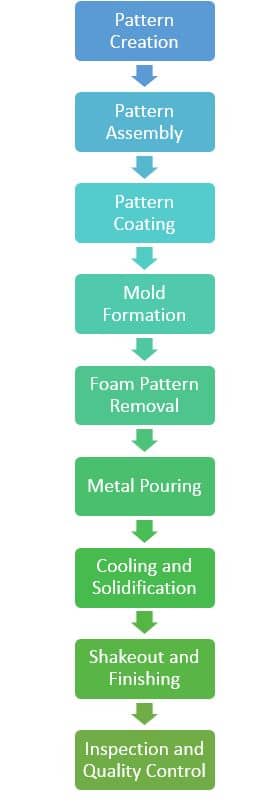

Foam Casting, Process Steps

Here we are describing one by one process steps. You can follow these steps when you use this casting process.

Pattern Creation

The process of creating a foam pattern involves shaping or carving expanded polystyrene (EPS) foam into the desired shape, resulting in an exact replica of the final desired product.

Pattern Assembly

If necessary, the foam pattern can be assembled with other foam components to create a more complex pattern. Foam-friendly glue or adhesive is utilized to securely join the foam pieces together.

Pattern Coating

After assembling the foam pattern, a refractory material, such as a ceramic slurry or refractory coating, is applied to coat it. This coating serves to create a protective layer around the foam pattern during the casting process.

Mold Formation

Once the foam pattern is coated, it is embedded in a casting flask. The casting flask is then filled with unbonded sand or another refractory material. The sand serves the purpose of supporting the foam pattern and providing stability during the casting process.

Foam Pattern Removal

By heating the mold to a high temperature, the foam pattern within the mold vaporizes. This vaporization process leads to the escape of gases, which, in turn, creates channels within the mold. These channels serve the purpose of allowing the molten metal to flow into the mold during the casting process.

Metal Pouring

After removing the foam pattern from the mold, the mold is prepared for metal pouring. The molten metal is then poured into the mold through the sprue, effectively filling the cavity that was left behind by the vaporized foam pattern.

Cooling and Solidification

Once poured, the molten metal fills the mold cavity and initiates the cooling and solidification process. The duration of cooling varies, depending on factors such as the type of metal being used and the complexity of the casting.

Shakeout and Finishing

Once the metal has completely solidified, the mold is broken or shaken to remove the sand and reveal the cast metal part. The cast part may require additional finishing processes, such as trimming, grinding, or machining, to achieve the desired shape and surface quality.

Inspection and Quality Control

After completion, the finished casting undergoes inspection to identify any defects or imperfections. Quality control measures are implemented to ensure that the casting meets the required specifications and standards.

Foam Casting Materials

For the Lost Form casting process following material will be needed.

  • Expanded Polystyrene (EPS) Foam
  • Refractory Coating (ceramic slurry or refractory coating)
  • Casting Flask
  • Unbonded Sand
  • Sprue
  • Molten Metal (aluminum, iron, steel, copper alloys, etc.)
  • Release Agents
  • Venting Materials (expendable foam or other materials for creating vents)
  • Degassing Agents (to remove gas bubbles from the molten metal)
  • Insulating Materials (to protect the surrounding area from heat)
  • Fluxes (to remove impurities from the molten metal)
  • Cooling Media (for post-casting cooling processes)
  • Cleaning Agents (to remove any residual materials or coatings)
  • Quality Control Tools and Instruments (visual inspection tools, measuring instruments, non-destructive testing equipment, etc.)

Metals Commonly used in Lost Foam Casting

Here is a list of metals commonly used in lost foam casting

  • Aluminum Alloys
  • Copper Alloys
  • Magnesium Alloys
  • Nickel-Based Alloys
  • Steel Alloys

Polyurethane Foam Casting

Polyurethane foam casting is a specialized type of lost foam casting that uses polyurethane foam to create molds for metal parts. The process begins with creating the desired shape of the part using foam. The foam pattern is then coated with a ceramic material to create a shell, which is used as the mold for casting metal.

Once the shell is created, molten metal is poured into it, vaporizing the foam pattern and leaving behind a high-quality metal part. This method offers many benefits, including the ability to create complex and intricate parts with great accuracy, rapid prototyping, and cost-effectiveness. Additionally, Polyurethane foam casting is commonly used in a variety of industries. For instance, automotive, aerospace, and medical engineering, to create prototypes and short-run production parts.

Lost Foam Casting Products

Lost foam casting, a casting process, utilizes a foam pattern to form a mold for metal casting. In this process, the foam pattern is coated with refractory material. Subsequently, as the molten metal is poured into the mold, the foam pattern undergoes vaporization, making way for the molten metal. Consequently, this method facilitates the casting of complex shapes and intricate details. There are a lot of applications for Lost Foam Casting. For examples;

  • Engine blocks
  • Pump and valve bodies
  • Impellers
  • Cylinder heads
  • Artistic sculptures
  • Manhole covers
  • Aerospace components (turbine blades, intake manifolds, structural parts)
  • Industrial machinery parts
  • Automotive parts (transmission cases, gearbox housings, suspension components)
  • Agricultural equipment components
  • Marine parts (propellers, marine engine components)
  • Electrical motor housings
  • Medical equipment components
  • Oil and gas industry components (valve bodies, pipe fittings)
  • Foundry patterns and molds (used in other casting processes)

Lost Foam Casting Engine Block

Lost foam casting is a popular method for producing engine blocks due to its ability to create complex and highly accurate parts. In this process, a foam pattern is made into the shape of the engine block. The pattern is then coated with a ceramic shell and heated to a high temperature, causing the foam to vaporize and leaving a void in the shell. Molten metal is then poured into the shell, occupying the space left by the foam.

Lost Foam Casting, Engine Block Manufacturing

This method allows for the creation of highly precise engine blocks with large and intricate designs that are difficult to manufacture using traditional casting methods. Additionally, lost foam casting minimizes the need for tooling, making it a cost-effective production method for engine blocks. The automotive industry commonly uses lost foam casting to create engine blocks that are both durable and efficient while keeping production costs.

Advantages and Disadvantages of Foam Casting

Lost Foam Casting process has both advantages and disadvantages.

Advantages of the Casting Process

There are several advantages of the Lost Foam Casting Process.

Complex Geometries

Lost foam casting allows for the production of intricate and complex shapes that may be difficult or costly to achieve using other casting methods.

Design Flexibility

The process enables designers to incorporate intricate details, thin walls, and complex internal features into the foam pattern, resulting in high-precision castings.


Lost foam casting can often reduce production costs since it eliminates the need for cores, reduces machining requirements, and minimizes the need for assembly.

Reduced Post-Casting Operations

The dimensional accuracy and surface finish achieved through lost foam casting often reduce the need for extensive post-casting machining or finishing operations.

Material Savings

Lost foam casting typically requires less material compared to other casting methods since there are no cores or gating systems involved.

Environmental Benefits

The process generates less waste, as the foam pattern is vaporized and consumed during casting, minimizing the need for pattern disposal or reclamation.

Disadvantages of the Casting Process

The suitability of this process depends on the application of the process. Generally, there are some disadvantages to this process.

Pattern Fragility

Foam patterns used in lost foam casting can be fragile and susceptible to damage during handling, transportation, or the molding process.

Pattern Production Complexity

Creating foam patterns with intricate designs can be time-consuming and require skilled craftsmanship or specialized equipment.

Limited Material Compatibility

Lost foam casting is best suited for non-ferrous metals, such as aluminum, magnesium, or copper alloys. It may not be suitable for high-temperature or reactive materials like steel or iron.

Surface Finish Limitations

Achieving a smooth surface finish on castings may be challenging with lost foam casting, particularly for complex geometries or internal features.

Casting Size Limitations

Lost foam casting is more suitable for smaller to medium-sized castings. Producing large or heavy castings through this method can be challenging due to the handling and structural integrity of the foam patterns.

Process Control

Lost foam casting requires precise control of process parameters, such as temperature, gas flow, and metal pouring, to ensure consistent casting quality, which may require skilled operators and advanced equipment.

Comparison with Other Casting Processes

Generally, there are more common casting processes like Sand Mold Casting, Pressure Die Casing, and Investment Casting, and Gravity Casting. Lost Foam Casting is also a popular casting process in the manufacturing industry. Foam casting has several advantages over other casting processes, making it a popular choice, especially for creating complex parts. Unlike traditional casting methods, which rely on permanent molds and patterns, foam casting uses a foam pattern that is coated with a ceramic material to create a mold, which is then filled with molten metal.

Casting Process

The Foam Casting Process can compare with other casting processes. For Example the followings are some common casting processes.

  • Sand Casting
  • Investment Casting
  • Die Casting
  • Centrifugal Casting
  • Continuous Casting
  • Shell Molding
  • Vacuum Casting
  • Permanent Mold Casting
  • Electroslag Casting
  • Squeeze Casting
  • Continuous Belt Casting
  • Ceramic Mold Casting
  • Plaster Casting
  • Slush Casting

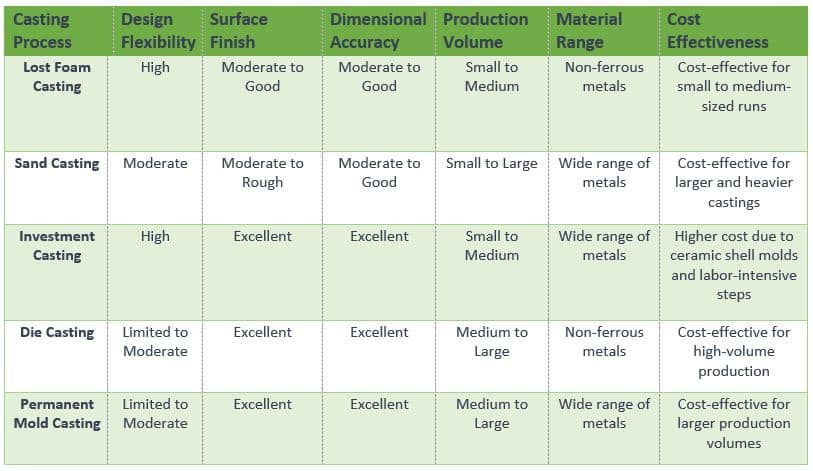

The following table compares the common casting processes.

Comparison of Casting Processes

Lost Foam Casting Tips

Here are some neutral Lost Foam Casting tips

  • Select the appropriate foam type, density, and thickness for your specific part design.
  • Keep foam patterns clean and avoid punctures or dents that could affect the final metal product.
  • Use a high-quality ceramic material for coating the foam pattern to ensure a durable and long-lasting mold.
  • Allow enough time for the ceramic to cure properly before pouring the molten metal.
  • Use a suitable gating and riser system to ensure proper flow of the molten metal and prevent shrinkage and porosity.
  • Ensure that the metal temperature and pouring speed are optimal for the specific metal being used and the size and complexity of the part being cast.
  • Maintain proper ventilation to avoid air entrapment in the mold and ensure a high-quality final product.
  • Implement quality control measures to test for defects in the final metal product and make improvements for future castings.
  • Partner with a reputable foundry that has experience with lost foam casting to ensure the highest quality and accuracy.


In conclusion, lost foam casting is an innovative and cost-effective method of creating highly precise and complex metal parts. This casting process has rapidly gained popularity in recent years due to its many advantages, including cost savings, faster lead times, and the ability to produce intricate designs with precision. It is a popular choice for various industries. For example; automotive, aerospace, and marine engineering, among others. As technology advances and new materials become available, lost foam casting is sure to continue to evolve and adapt, making it an exciting and promising casting process for the future.
